XX-8000A
XIANGXING
XX-8000A
Machine Parameters
Model | XX-8000A |
Usage | Plastic welding |
Power supply | AC380V |
Output Power | 8000W |
Oscillation frequency | 27.12KHz |
Working Speed | 400-700 pcs/H |
Rectifier | Silicon diode |
Oscilliation tube | 7T69RB |
Gap of electrodes | 250mm |
Max welding area | 460*610mm |

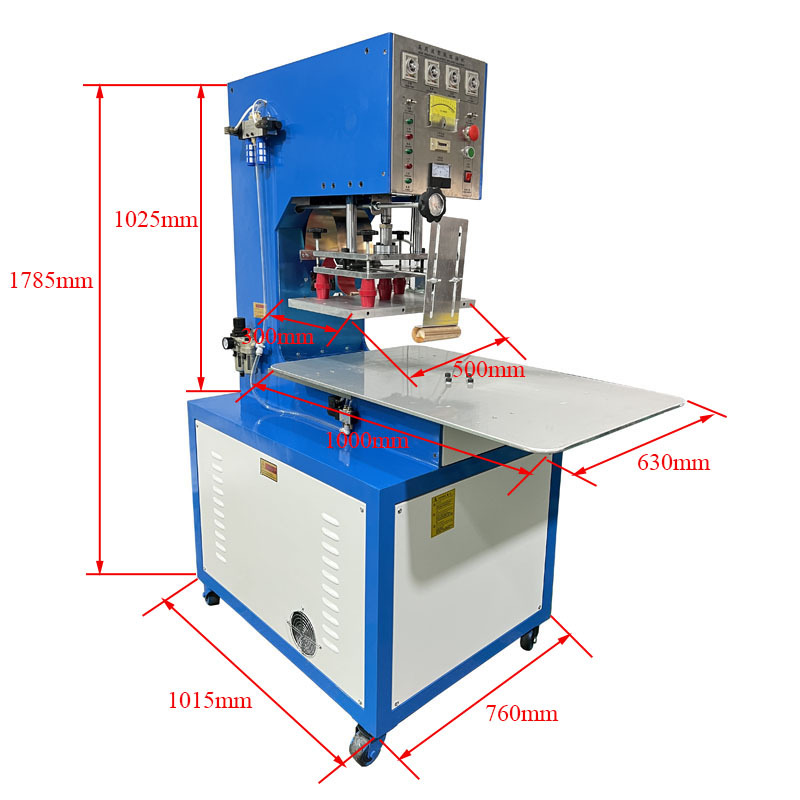

Machine size | 760*1015*1785mm |
Weight(N.W) | 420KGS |
Origin | Shenzhen China |
Brand name | Xiangxing |
Suitable material | PVC |
Application:
Using high frequency thermal bonding to heaten the workpiece through high frequency mold , arrive at plastic with plastic welding, plastic with paper card, or paper card with paper card plastic bonding, the surface of the card is usually coated with a layer of PVC or APET, PETG glue, under the action of high frequency melting as a whole.
It's suitable for welding Blister and Blister
Bilister and paper card
Paper card and paper card
Blister and tyvek paper
Widely used in stationery,toys,electronic,hardware,cosmetic , medical product,etc.
