XX-2026TF
XIANGXING
XX-2026TF
The high frequency vibration acts on the two surfaces of the plastic,and the heat generated by the vibration causes these two srufaces to be welded together tighty,the strength of welding area is same as other area of the plastic.No need adhesive or heating.Replace the traditional hot pressing or bonding process.Low cost and no pollution, no damage to plastic tube.
Key Features
*Machine made of 304 stainless steel, acid and alkali resistance,corrosion resistance.
*Adopts ultrasonic sealing technology ,no need warm up time,more stable and neat sealing ,no distortion and low reject rate less than 1%,Easy operation,easy maintenance,stable welding process.
*Manually feed the tube ,press start tutting,machine could automatically identify the registration mark,filling , sealing,with coding ,end trimming.
*High welding strength,good sealing performance,low cost,clean pollution-free and wont damage the plastic tube
*Adopting PLC controler,easy to operate,auto-protecting system can avoid the damage caused by improper operation.
*Machine is equipped with Airtac cylinders and Airtac magnetic valves ,stable performance.
*With coding function at the end of tube ,code digital numbers could be customized,manual place the tube ,press start button,machine automatically trace the color mark, sealing , coding .

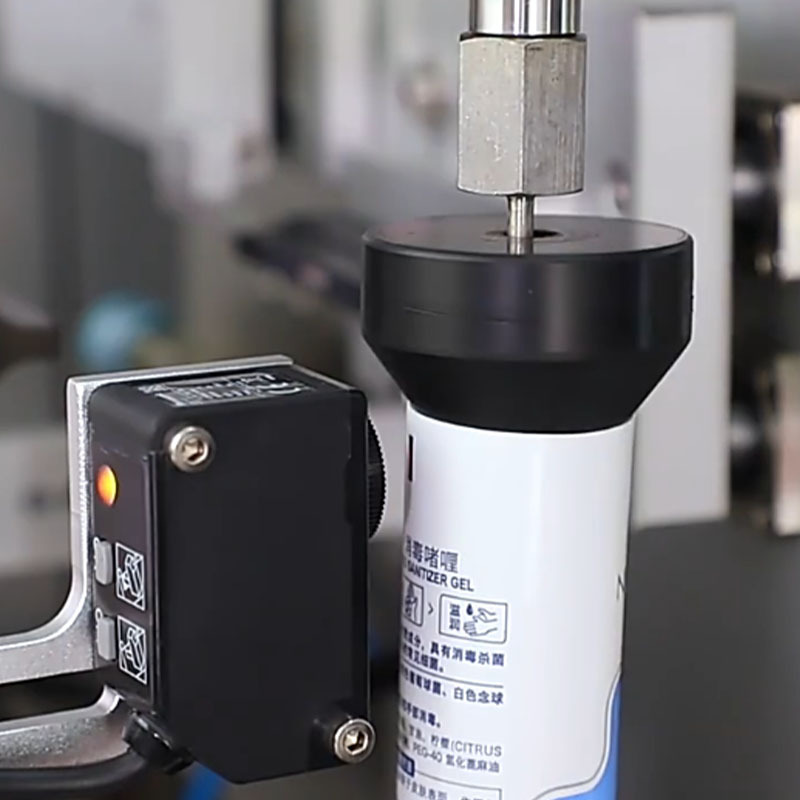

*Advance and Unique.Adopts Japanese Panasonic high sensitive sensor with stepping motor,could locate the color mark fast and accurate,multi-function,trace the color mark,seal and trimming all in one machine.
*Auto frequency tracking ultrasonic power generator,fool-proof operation. Intelligent automatic frequency tracking system.no need to manually adjust the frequency.with power compensation function, machine power will not decrease due to long time use. flexible power regulation based on tube material and size ,output , lowest failure rate.longer service life than ordinary electric control cabinet.
*Auto filling.orientation,welding,cutting,filling is stable and accurate and noiseless.
Aplication
Suitable for plastic tube welding sealing ,for the cosmetic,medicine,commodity,food, chemical,beverage,etc.
Specification
Model | XX-2026TF |
|---|---|
Power supply | AC220V 50/60HZ |
Power | 2000W |
Frequency | 20KHZ |
Tube length | 50~250mm |
Tube diameter | 10-50mm |
Capacity speed | 10~20pcs/min |

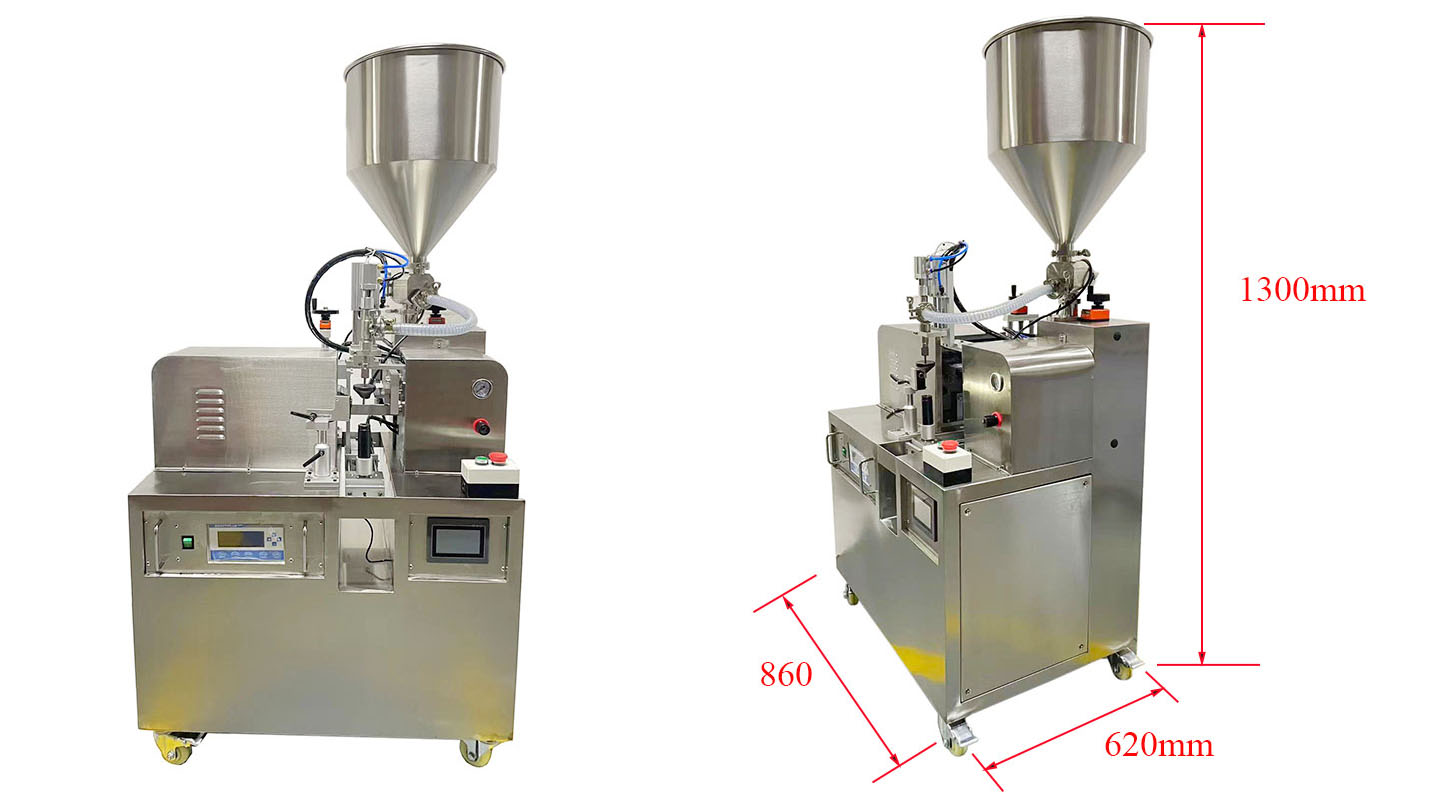

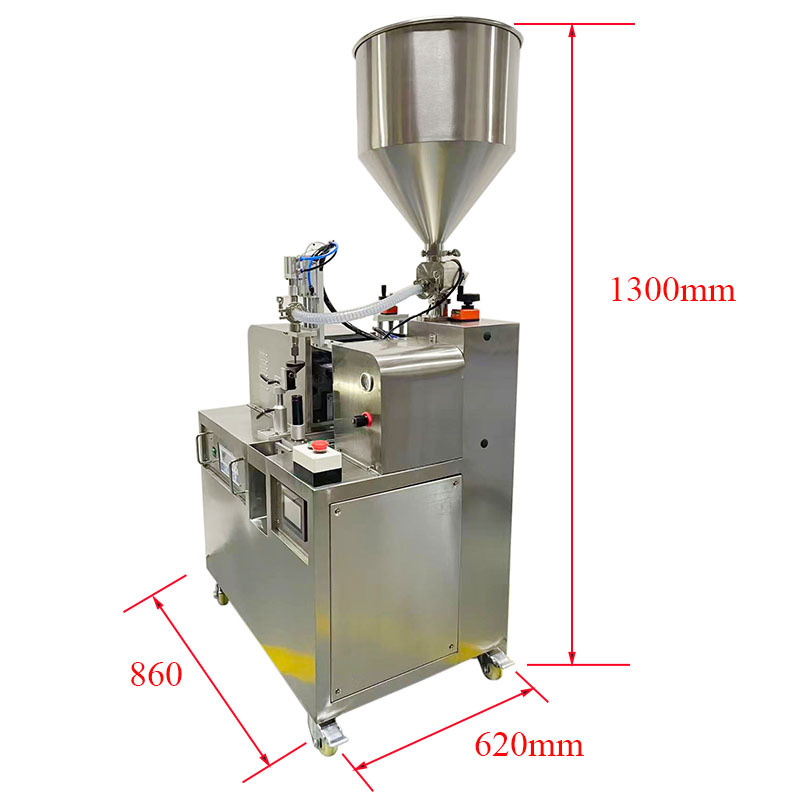

Machine size | 860*620*1300mm |
Net weight | 108KG |
Material | Stainless steel |
Automatic grade | Semi-automatic |
Driven type | Pneumatic |
